Tools for noise source localisation
This set of tools allows identifying noise sources in mecha(tro)nic systems or industrial installations.
Location: FlandersMake@.KULeuven

Description

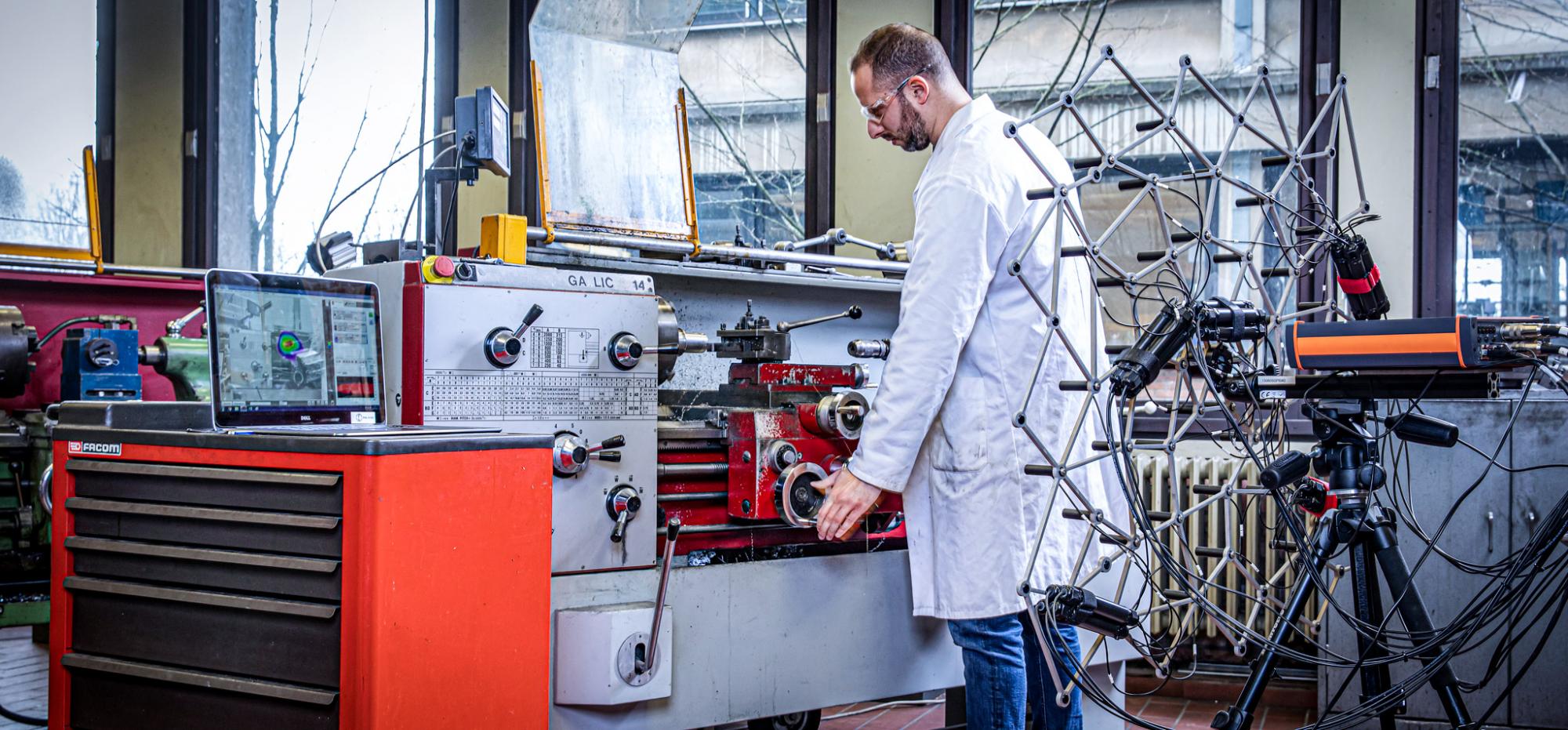

With this set of tools we can identify noise sources in mecha(tro)nic systems or industrial installations. Our infrastructure consists of an acoustic camera with 40 microphones and various one- and three-dimensional sound intensity probes, allowing us to visualise radiated noise in up to three dimensions. After characterisation of the dominant noise sources, we can also offer appropriate countermeasures to efficiently reduce the noise issue.
Technical specifications
CAE Systems Noise Inspector acoustic camera |
|
Type |
Microphone array with 40 MEMS microphones |
Dynamic range (upper limit) |
120 dB |
Simcenter Soundbrush |
|
Type |
3D P-P probe with four 1/4" microphones |
Frequency range |
50 – 5000 Hz |
Dynamic range (upper limit) |
150 dB |
Bruël & Kjaer 3584 intensity probe |
|
Type |
P-P probe with two 1/2" microphones |
Frequency range |
30 – 10000 Hz |
Dynamic range (upper limit) |
162 dB |
G.R.A.S. 50AI-L intensity probe |
|
Type |
P-P probe with two 1/2" microphones |
Frequency range |
30 – 10000 Hz |
Dynamic range (upper limit) |
152 dB |
Microflown PU-Match intensity probe |
|
Type |
P-U probe |
Frequency range |
20 – 10000 Hz |
Dynamic range (upper limit) |
110 dB |
What do we offer?
With our setup we offer:
- Localisation and identification of acoustic sources in mecha(tro)nic systems.
