Recorder: Capturing perception & localisation data as used in autonomous vehicles

In the development cycle of autonomous mobile systems, it is important to have real perception data as soon as possible and to use as many simulation models as possible to develop and improve the software and underlying algorithms.

Our Recorder can speed up the process. Sensors, cameras and GPS systems are mounted on a moving platform. Its positioning emulates autonomous vehicles, which are then used to capture real observations in the physical environment. The robustness of software and algorithms can be tested based on real-world input without requiring a prototype vehicle. The result? Fully synchronized datasets can be generated in both indoor and outdoor environments.

Infrastructure for capturing perception data in real-world conditions with:

  • GPS-RTK, with a position accuracy of 1cm
  • 6 cameras for both a 360-degree view and stereo images
  • Lidar sensors
  • Radar sensors
  • Innovative types of sensors based on ultrasonic, sound, laser or light principles

Capable of robust outdoor testing.
Perception systems must also be tested in extreme weather conditions. To this end, the capture system has been adapted to:

  • Operate in rain and fog
  • Extreme sun and exposure situations

Flexible operation modes.
To extend the operating radius of the capture system, provision has been made to allow it to be mounted and moved both manually, on an autonomous outdoor AGV and on a forklift or tractor with a front-end loader.

Applications

  • Recording in company specific environments with the sensors available on the platform
  • Generation of fully synchronized datasets in the indoor and outdoor environments at Flanders Make
  • Testing of new sensors integrated in the open HW/SW architecture of the platform
  • Testing of new sensor configurations

Key figures

  • Various interfaces to connect new sensors: 24 DI, 4 DO, 5 AI/AO, RS485, USB-B and -C
  • 4 TB storage of perception data
  • Water resistant enclosure for testing in challenging conditions
  • Mechanical support and electrical wiring adaptable to sensor configurations with distances up to 4m
  • Battery for 2h measurement autonomy
  • Safety curtains to protect the test area up to 90m
recorder outdoors
lommel flanders make
recorder indoor
virtual
recorder warehouse

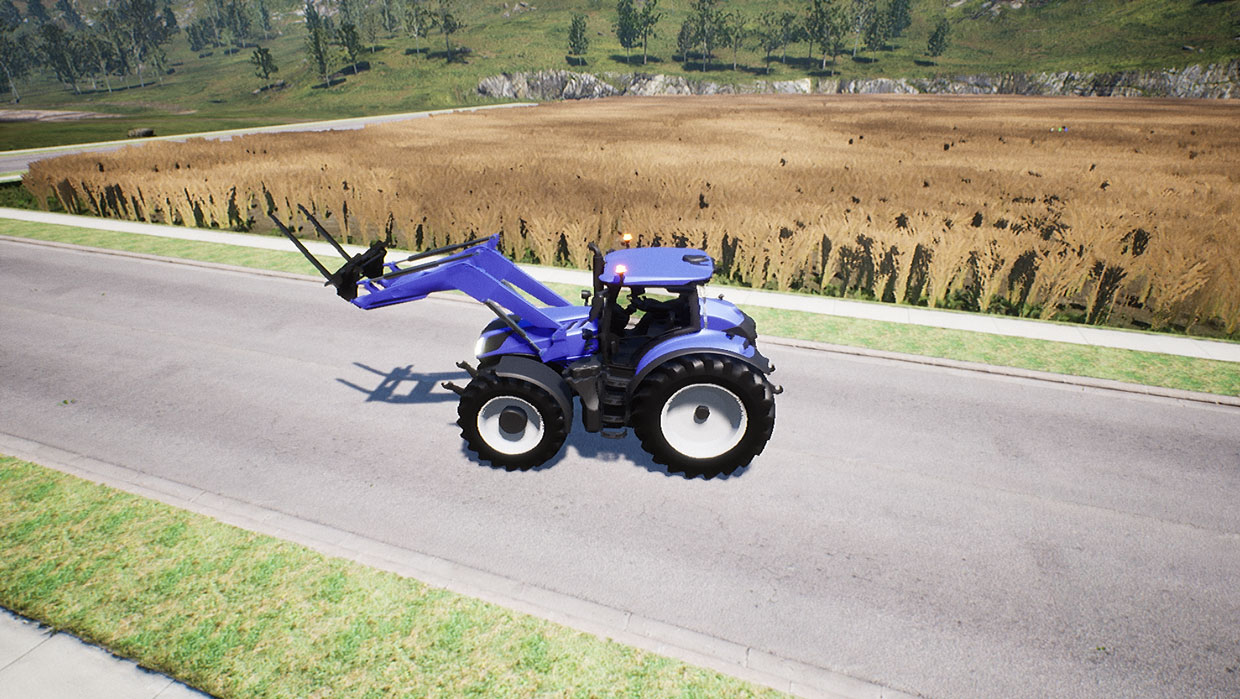

tractor simulation
